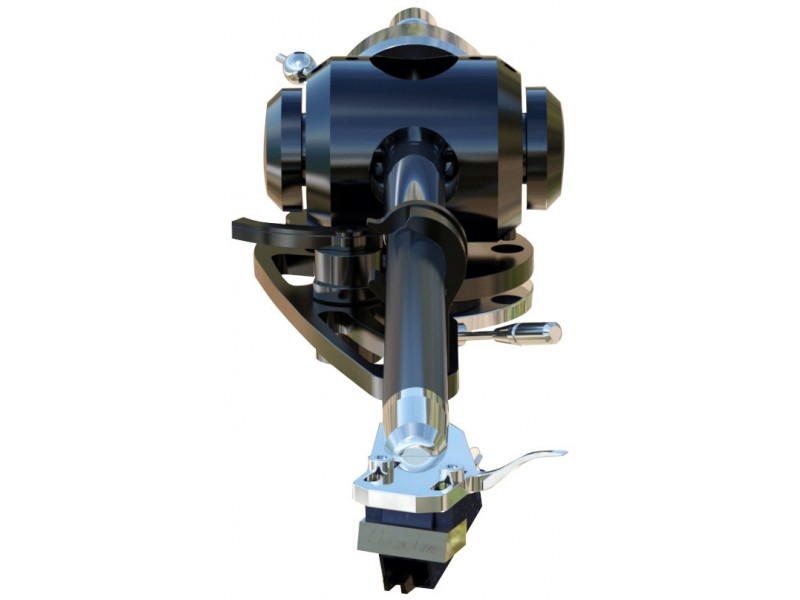

Origin Live Illustrious 9.5''

Origin Live Illustrious 9.5'' tonearm. En svært god tonearm med flere glitrende omtaler og mange awards. Origin Live har skaffet seg et rykte for å være blant de beste tonearmer i verden . Illustrious kan oppgraderes med bedre intern og eksternkabel. Armbord til Linn og Technics samt SME adapter skaffes til en rimelig pris. For Transrotor drivverk : ta kontakt og oppgi hvilken modell. Spesifikasjoner: Effective Arm mass : 12.7 gram Effective length 237 mm Overhang 17.24 mm Offset angle 22 degrees Mounting distance: platter centre to arm hole centre 222 mm Diameter of mounting hole 23 - 24 mm Size of base mounting nut 32mm A/F (across flats) Maximum armboard thickness 27mm Length of external cable 1.2m except for DJ option of 2m Capacitance in pF for all arms up to Conqueror 130 pF per channel Capacitance in pF for Linear Flow 2 cable 340 pF per channel Resistance in Ohms 0.002 ohms Produsentens informasjon : Ground-breaking design is behind the astonishing performance of the Illustrious arm. This award winning arm has been highly acclaimed as a true performance leader. in fact most arms don't even come close. The outstanding dynamics, bass power and transparency that this arm produce are a revelation. Many people wonder how much to invest in a tonearm. The answer to choosing the right arm for your needs is directly related to the importance of a tonearm in system hierarchy. To understand how much, a better tonearm will dramatically improve your system performance please see our “analysis of leading arms” page. This also reveals the story behind our cutting edge performance and introduces many aspects that apply to all our arms, saving repetition that would otherwise occur on every tonearm page. Features Hybrid arm tube composed of 5 materials has better energy dissapating qualities and higher rigidity than the Encounter tube, yielding increased transparency, dynamics and bass performance Ultra low friction dual pivot bearings yield vastly increased clarity and sweet, precise treble free from smearing. Dual pivot explained Floating vertical bearings decouple the armtube from the deck and prevent it adding colour to the sound. High mass Yoke results in more solid performance in most aspects of the music but particularly the bass. High strength aircraft alloy headshell for increased dynamics Copper conductor plugs are among of the highest quality available to provide a precise, tight electrical connection that eliminates signal degradation.
